Building materialsBahan bangunan · InterXroof · Skygard · InterXroll

Light. Weatherproof.
Lets the daylight in.

Ringan. Tahan cuaca.
Meneruskan cahaya.

Polypropylene roofing sheet and decorative roll for canopies, car ports, terraces, fences and garden walls - made on our own extrusion lines in Cikupa, Banten.

Atap polypropylene dan gulungan dekoratif untuk kanopi, carport, teras, pagar, dan dinding taman - dibuat di lini ekstrusi kami sendiri di Cikupa, Banten.

InterXroof Skygard InterXroll PP sheet

100% PPStrong, tough, chemical-resistant polypropylenePolypropylene kuat, liat, tahan bahan kimia

UVBlocks UV light; protects what is beneathMenahan sinar UV; melindungi di bawahnya

−40 ~ 120 °CHeat-resistant; keeps its shapeTahan panas; bentuk tidak berubah

FireApiFire-retardant gradeTahan api

ClarityJernihClear and bright light transmissionCahaya tembus jernih dan terang

ValueHargaHigh quality at an economical priceMutu tinggi dengan harga ekonomis

01 - InterXroof

Corrugated PP roof. Five grades, five lengths.Atap PP bergelombang. Lima kelas, lima panjang.

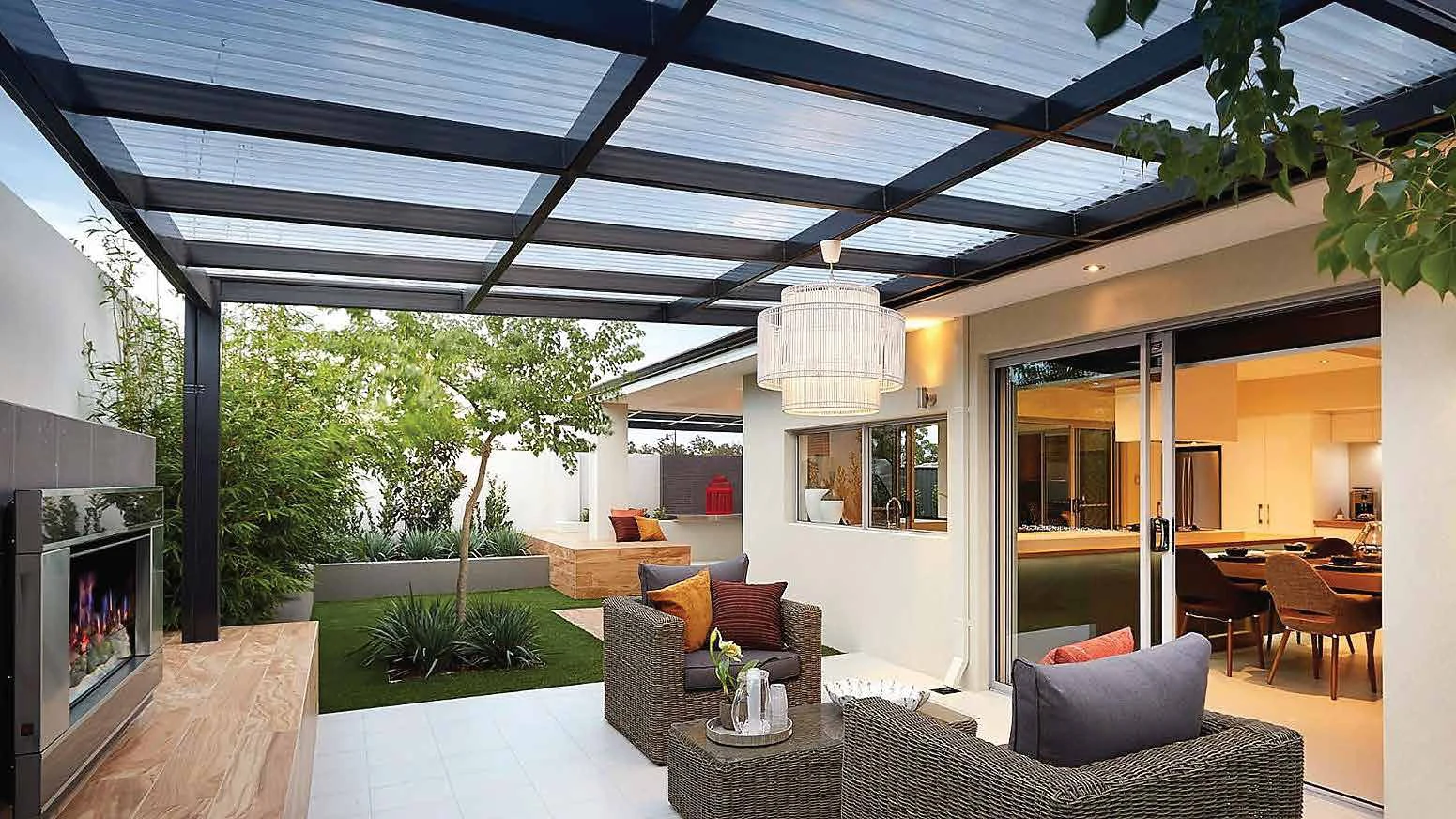

Made from high-quality polypropylene, InterXroof covers car ports, canopies and terraces without blocking daylight. Transparent, suitable for all climates, indoors and out, and unaffected by chemical reactions.

Dibuat dari polypropylene berkualitas tinggi, InterXroof menutup carport, kanopi, dan teras tanpa menghalangi cahaya. Transparan, cocok untuk semua iklim, dalam maupun luar ruangan, dan tidak terpengaruh reaksi kimia.

MaterialMaterial

100% polypropylene (PP)Polypropylene (PP) 100%

ProfileProfil

Corrugated (wave)Bergelombang

WidthLebar

81 cm · 105 cm

LengthPanjang

150 · 180 · 210 · 240 · 300 cm

ThicknessKetebalan

0.5 · 0.6 · 0.65 · 0.8 · 1.0 mm

ColourWarna

TransparentTransparan

PackingKemasan

10 or 20 sheets per pack, by grade10 atau 20 lembar per pak, sesuai kelas

InterXroof 60InterXroof 60

ThicknessTebal 0.5 mm · widthlebar 81 cm · 20 pcs/packlembar/pak

CodeKode	Length (cm)Panjang (cm)	Pcs/packIsi/pak
RF-615	150	20
RF-618	180	20
RF-621	210	20
RF-624	240	20
RF-630	300	20

InterXroof 80InterXroof 80

ThicknessTebal 0.65 mm · widthlebar 81 cm · 10 pcs/packlembar/pak

CodeKode	Length (cm)Panjang (cm)	Pcs/packIsi/pak
RF-815	150	10
RF-818	180	10
RF-821	210	10
RF-824	240	10
RF-830	300	10

InterXroof 120InterXroof 120

ThicknessTebal 1.0 mm · widthlebar 81 cm · 10 pcs/packlembar/pak

CodeKode	Length (cm)Panjang (cm)	Pcs/packIsi/pak
RF-115	150	10
RF-118	180	10
RF-121	210	10
RF-124	240	10
RF-130	300	10

InterXroof 105 EconomyInterXroof 105 Ekonomis

ThicknessTebal 0.6 mm · widthlebar 105 cm · 20 pcs/packlembar/pak

CodeKode	Length (cm)Panjang (cm)	Pcs/packIsi/pak
IR-615	150	20
IR-618	180	20
IR-621	210	20
IR-624	240	20
IR-630	300	20

InterXroof 105 StandardInterXroof 105 Standard

ThicknessTebal 0.8 mm · widthlebar 105 cm · 10 pcs/packlembar/pak

CodeKode	Length (cm)Panjang (cm)	Pcs/packIsi/pak
IR-915	150	10
IR-918	180	10
IR-921	210	10
IR-924	240	10
IR-930	300	10

Skygard

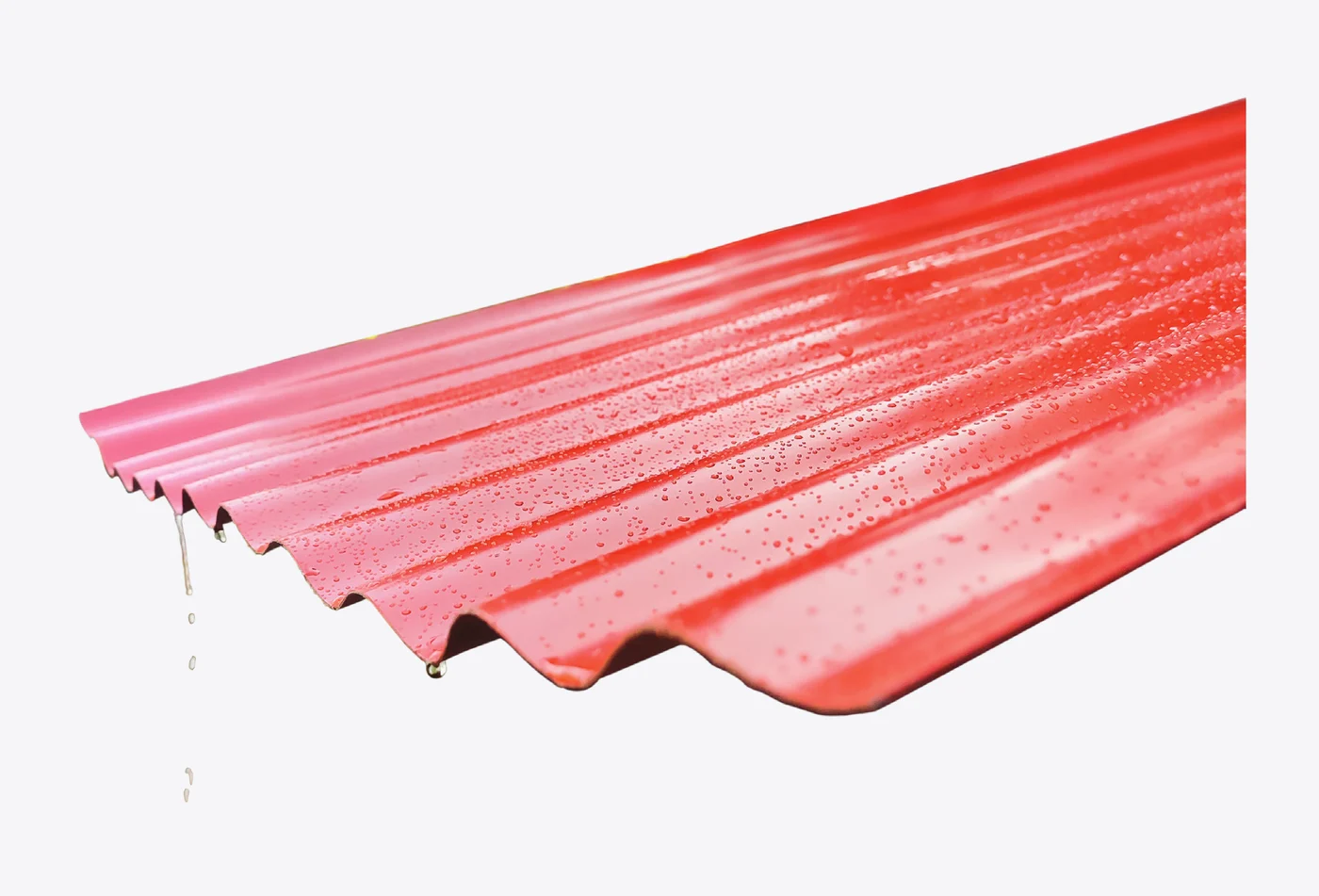

02 - Skygard Roof

Best quality at an affordable price.Kualitas terbaik dengan harga terjangkau.

Brick-red corrugated PP roofing, 1.0 mm, for houses, warehouses and farm buildings. Both faces can be used, water beads off the hydrophobic surface, and the sealed overlap with safety channel keeps rain out.

Atap PP bergelombang warna merah bata, tebal 1,0 mm, untuk rumah, gudang, dan bangunan pertanian. Kedua sisi bisa dipakai, air menggelinding di permukaan hydrophobic, dan tumpang tindih bersudut tertutup dengan alur pengaman mencegah bocor.

Heat-resistantTahan terhadap panas
Both faces (top/bottom) can be usedKedua sisi (atas/bawah) bisa digunakan
Hydrophobic surface effectMemiliki efek hydrophobic
Perfect overlap system with sealed cornerSistem tumpang tindih yang sempurna dengan sudut tertutup
Safety channel that prevents leaksAlur pengaman untuk mencegah kebocoran
Faster, neater, parallel installation thanks to high precisionPemasangan lebih cepat, rapi, dan paralel berkat presisi tinggi

Two usable facesBisa 2 sisi

Hydrophobic

Heat-resistantTahan panas

Skygard Roof

ThicknessTebal 1.0 mm · widthlebar 81 cm · 10 pcs/packlembar/pak · brick redmerah bata

CodeKode	Length (cm)Panjang (cm)	Pcs/packIsi/pak
SG-118	180	10
SG-124	240	10
SG-130	300	10

Non-conductivePenahan aliran listrikCorrosion- & chemical-resistantTahan korosi & bahan kimiaExtreme-weather resistantTahan cuaca ekstremBlocks sunlightMenahan sinar matahariHeat-resistantTahan panasAnti UVAnti UVWaterproofTahan airStrong & lightKuat & ringan

Installation guidePanduan pemasangan

Three rules for a roof that does not leak.Tiga aturan untuk atap yang tidak bocor.

Batten frameRangka reng

Attach battens to the spacing below for each roof length.

Pasang reng dengan jarak sesuai tabel untuk tiap panjang atap.

Roof lengthPanjang atap	Batten spacingJarak reng	BattensJumlah reng
1,500 mm	450 mm	3
1,800 mm	550 mm	3
2,100 mm	490 mm	4
2,400 mm	450 mm	4
3,000 mm	480 mm	5

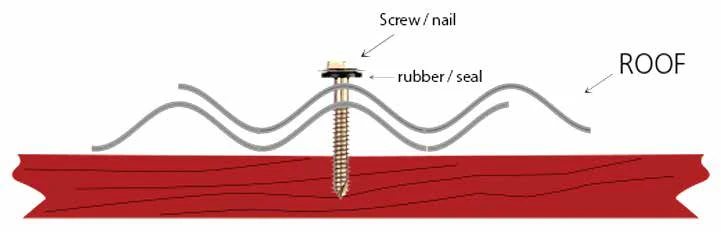

Fix on the wave crestPaku di puncak gelombang

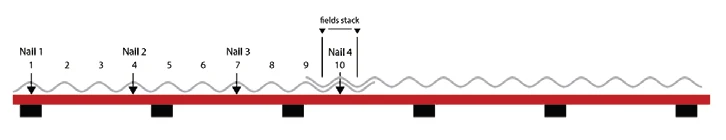

Nails or screws go on top of the wave, every 3 waves, with a rubber seal, so rain runs off without leaking. Pre-drill the hole so the sheet does not crack.

Paku atau sekrup berkaret dipasang di puncak gelombang, setiap 3 gelombang, supaya air hujan mengalir tanpa bocor. Lubangi dulu sebelum dipaku agar lembaran tidak retak.

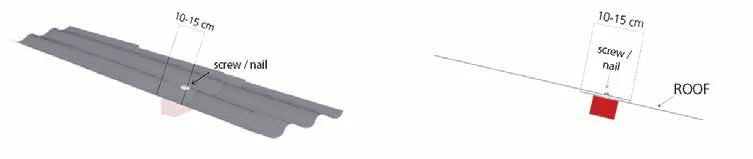

Overlap 10–15 cmTumpang tindih 10–15 cm

Lay sheets from the top down with a 10–15 cm overlap.

Pasang lembaran dari atas ke bawah dengan tumpang tindih 10–15 cm.

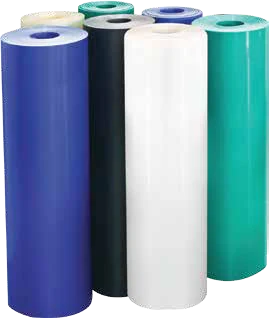

InterXroll in blue, white, black and green

03 - InterXroll

Decorative PP roll for fences, walls and gardens.Gulungan PP dekoratif untuk pagar, dinding, dan taman.

A modern cover for the fence of the house, the wall of the home garden and more - decorative as well as protective, indoors or outdoors, in all weather. Six embossed patterns, including the new Panda & bamboo motif.

Penutup modern untuk pagar rumah, dinding taman, dan lainnya - dekoratif sekaligus melindungi, di dalam maupun luar ruangan, dalam segala cuaca. Enam motif emboss, termasuk motif baru Panda & bambu.

Glass

Sand

Dot

Line

Flora

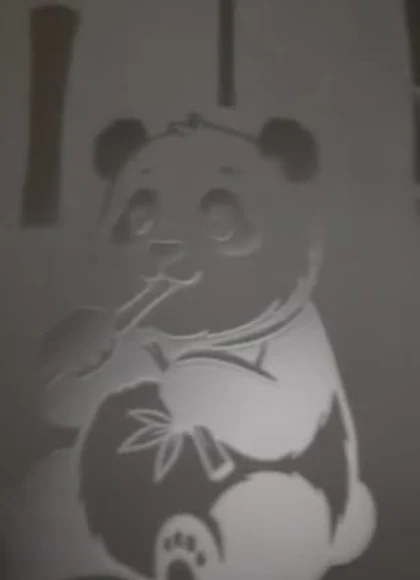

Panda · newbaru

Series 60Seri 60

Thickness 0.45 mm · roll 1 m × 50 mTebal 0,45 mm · roll 1 m × 50 m

TypeTipe	CodeKode	Thickness (mm)Tebal (mm)	Width (m)Lebar (m)	Length (m)Panjang (m)
Interx-Line 60	Line-60	0.45	1	50
Interx-Sand 60	Sand-60	0.45	1	50
Interx-Glass 60	Glass-60	0.45	1	50
Interx-Dot 60	Dot-60	0.45	1	50
Interx-Panda 60	Panda-60	0.45	1	50

Series 80Seri 80

Thickness 0.60 mm · roll 1 m × 50 mTebal 0,60 mm · roll 1 m × 50 m

TypeTipe	CodeKode	Thickness (mm)Tebal (mm)	Width (m)Lebar (m)	Length (m)Panjang (m)
Interx-Flora 80	Flora-80	0.6	1	50
Interx-Sand 80	Sand-80	0.6	1	50
Interx-Dot 80	Dot-80	0.6	1	50
Interx-Line 80	Line-80	0.6	1	50
Interx-Glass 80	Glass-80	0.6	1	50
Interx-Panda 80	Panda-80	0.6	1	50

Series 80 JumboSeri 80 Jumbo

Thickness 0.60 mm · roll 1.2 m × 40 mTebal 0,60 mm · roll 1,2 m × 40 m

TypeTipe	CodeKode	Thickness (mm)Tebal (mm)	Width (m)Lebar (m)	Length (m)Panjang (m)
Interx-Jumbo Glass 80	Jumbo Glass-80	0.6	1.2	40

Series 120Seri 120

Thickness 1.00 mm · roll 1 m × 40 mTebal 1,00 mm · roll 1 m × 40 m

TypeTipe	CodeKode	Thickness (mm)Tebal (mm)	Width (m)Lebar (m)	Length (m)Panjang (m)
Interx-Glass 120	Glass-120	1	1	40

Colours: clear, blue, green and grey; transparent or opaque. Uniform colour, no holes, cracks or foreign particles; tolerance +5 % on thickness and ±10 mm on width. Label printed on the roll for after-sales tracking.Warna: bening, biru, hijau, abu-abu; transparan atau opak. Warna seragam, tanpa lubang, retak, atau partikel asing; toleransi +5 % ketebalan dan ±10 mm lebar. Label dicetak pada gulungan untuk penelusuran purna jual.

04 - PP sheetLembaran PP

Sheet for converters, printers and packaging makers.Lembaran untuk konverter, percetakan, dan produsen kemasan.

Because we convert the same sheet ourselves, we understand how it behaves in die-cutting, welding, folding and printing.

Karena kami sendiri mengonversi lembaran yang sama, kami memahami perilakunya saat die-cutting, pengelasan, pelipatan, dan pencetakan.

FormBentuk

Flat sheet, cut to size or in rollLembaran datar, potong sesuai ukuran atau gulungan

FinishFinishing

Clear, translucent and opaque colours; matt or gloss; embossed patternsBening, tembus pandang, dan warna opak; matte atau glossy; motif emboss

ThicknessKetebalan

Range on request, to customer specificationRentang sesuai permintaan, mengikuti spesifikasi pelanggan

Typical usesPenggunaan umum

Stationery, packaging, print, display, industrialAlat tulis, kemasan, cetak, display, industri

Custom PP & PET productsProduk PP & PET custom ›

Complementary productProduk pelengkap

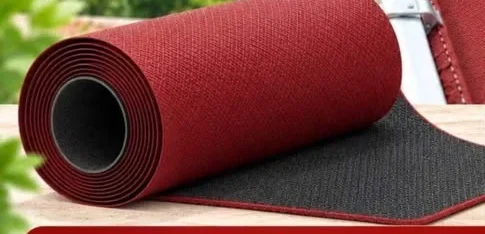

Karpet Talang Air

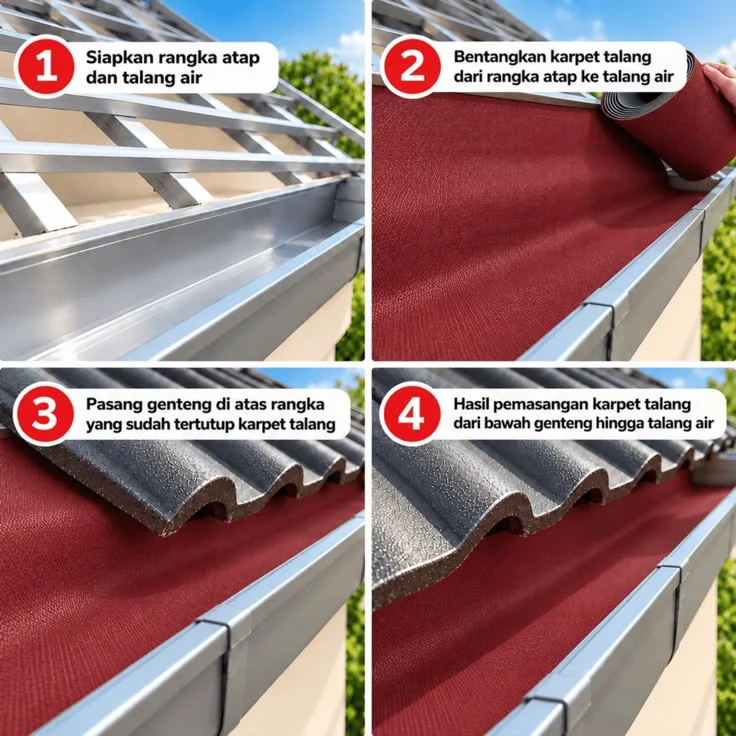

Multi-purpose gutter lining, 0.9 mm, tear-resistant, heat- and UV-resistant, easy to cut. Laid from the roof frame into the gutter under the tiles so water runs straight into the gutter. Sold by the metre.

Lapisan talang multifungsi, tebal 0,9 mm, anti sobek, tahan panas dan UV, mudah dipotong. Dijual per meter. Dibentangkan dari rangka atap ke talang, di bawah genteng, sehingga air langsung mengalir ke talang.

A complementary product from our supplier partner, selected and sold by InterX alongside our roofing.Produk pelengkap dari mitra pemasok; dipilih dan dijual oleh InterX untuk melengkapi atap dan talang.

Order, sample or site advice.Pesan, sampel, atau konsultasi proyek.

Roofing, roll and sheet ship from our factory in Cikupa, Banten. Trial samples are available before volume orders, and our sales team can help estimate sheets, battens and screws for a project.

Atap, gulungan, dan lembaran dikirim dari pabrik kami di Cikupa, Banten. Sampel uji coba tersedia sebelum pemesanan dalam jumlah besar, dan tim sales kami membantu menghitung kebutuhan lembaran, reng, dan sekrup untuk proyek.

Request a quotationMinta penawaran info@interx.co.id +62 21 594 10008

Factory & head office - Cikupa, BantenPabrik & kantor pusat - Cikupa, Banten

Cikupamas Industrial Estate, Jl. Bhumimas IV No. 1, Cikupa, Tangerang 15710
+62 21 594 10008 · info@interx.co.id
